Java J-Air R｜Full Carbon Folding Bike with Shimano 105 Di2 — The Hottest Drop Bar Folder of the Year

Hey everyone, welcome back to the Jollymap Blog! This is Jason here.

If you've been following the folding bike scene lately, you'll know one name has been dominating every conversation — Java's Neo family.

From the original 20-inch standard model, all the way to the newly released 14-inch compact folder, the Java Neo series has grown into one of the most complete and value-packed folding bike line-ups on the market. But at the last Taipei Cycle Show, Java made an even bigger splash — with a bike that stopped everyone in their tracks:

The all-new J-Air Full Carbon Drop Bar Folder.

So why is this bike getting so much attention? Aside from being a rare drop bar folding bike, the real showstopper is that it comes stock with a Shimano 12-speed 105 Di2 electronic groupset — straight out of the box!



This kind of spec is something you won't find on other major folding bike brands like Dahon or Birdy — not yet, anyway. Java is genuinely ahead of the curve on this one.

And true to the Neo family's DNA of high value-for-money, the J-Air R — with its full carbon frame and Shimano 105 Di2 — comes in at just over HK$10,000. Even with a multi-month waiting list, plenty of Hong Kong cyclists have already placed their orders.

After a long wait, this beauty has finally landed at Jollymap! Today, Jason is going to break down every feature, selling point, and thing-you-need-to-know before pulling the trigger. Stick around till the end!



1. Drop Bar Folders Aren't New — So What Makes the J-Air R Special?

Drop bar folding bikes aren't a mainstream category, but they're not exactly a Java invention either. Other brands have released similar models over the years, including:

• Dahon Archer P18 — the classic drop bar folder
• Birdy P45 Special Edition — which we've reviewed on the Jollymap channel before



In other words, a drop bar folder is the "best of both worlds" option — compact, convenient, and fast all rolled into one.

What makes the Java J-Air R so hyped is that it combines four killer features — full carbon frame + electronic shifting + larger 451 wheels + drop bar design — all in one folder for just over HK$10K. The value here is genuinely off the charts.



2. Aesthetics: Marble-Pattern Carbon Frame That Turns Heads

Frame & Colour

The J-Air R uses the same Carbon 20-inch frame as the dual-chainring J-Air, shared across the Neo line.

For now, it's only available in the most popular Marble Pattern finish.

Honestly, this might be the best-looking colourway in Java's entire range. The marble treatment flows seamlessly across the head tube, front fork, main frame, and rear stays — giving the whole bike a unified, premium look. You will absolutely get looks on the road.

Jason's guess? If this model sells well, Java will likely roll out more colourways down the line. Stay tuned to Jollymap for updates!



3. Drivetrain: 52/36 Double Chainring + Shimano 105 Di2

This is the heart and soul of the J-Air R, so let's dig deep.



• 52/36 Double Chainring — Straight Out of the Road Bike Playbook

Java clearly designed this bike to answer one specific desire: "I want a folder that feels like a road bike."

Instead of going with the traditional 50/34 Compact Combo found on most folders, Java opted for a 52/36 double chainring paired with 170mm crank arms — road bike territory.



Combined with the fact that the J-Air R uses 451 wheels (slightly larger than the standard 406), the top-end speed easily beats a typical 20-inch folder.



• Top Speed Comparison: J-Air R vs Modified 20-Inch Folder

  Many 20-inch folder riders swap their stock 50T chainring for a 54T to chase higher speeds. So how does the J-Air R's 52T + 451 wheels compare to a modified 54T + 406 wheels setup?

  Using Jollymap's bike speed calculator:

  Configuration	Front	Rear (Smallest)	Wheel	Cadence	Top Speed
  Modified 20-inch (54T)	54T	11T	406	80 rpm	~35.1 km/h
  J-Air R	52T	11T	451	80 rpm	~35.2 km/h

  As you can see — no chainring swap required. The J-Air R hits the same or higher top speed out of the box.



• Climbing Torque: J-Air R Is Actually Easier on the Hills

  Here's the catch with upsizing your chainring — you gain top speed but lose climbing power. With a double chainring, the J-Air R gets you the best of both.

  The J-Air R uses an 11–34T cassette, versus the 11–40T on the original 20-inch Carbon version. Let's compare climbing gearing:

  Configuration	Small Ring	Rear (Largest)	Wheel	Cadence	Climbing Speed
  Standard 20-inch	50T	40T	406	80 rpm	~8.9 km/h
  J-Air R	36T	34T	451	80 rpm	~7.9 km/h

  Even with larger 451 wheels, the tiny 36T small ring makes climbing significantly easier than a 50T single-ring 20-inch folder. If you love long climbs or hilly routes, the J-Air R has got you covered.



• Java Pre-Designed the Frame for Dual Chainrings

  The reason the J-Air R can accommodate a double chainring is because the frame comes with a built-in front derailleur mount.

  Good news for existing J-Air Carbon (single-ring) owners — Java will be selling this front derailleur adapter separately in the future, so you can upgrade to a dual chainring setup yourself!



• Shimano 105 Di2 — Where Does the Battery Go?

  If you're familiar with Shimano Di2, one question probably came to mind: where's the battery hidden?

  Traditional Di2 batteries typically go in one of two places:

• Inside the seatpost — not possible on a folder because it interferes with folding
• Under the BB — but this frame doesn't have space there either

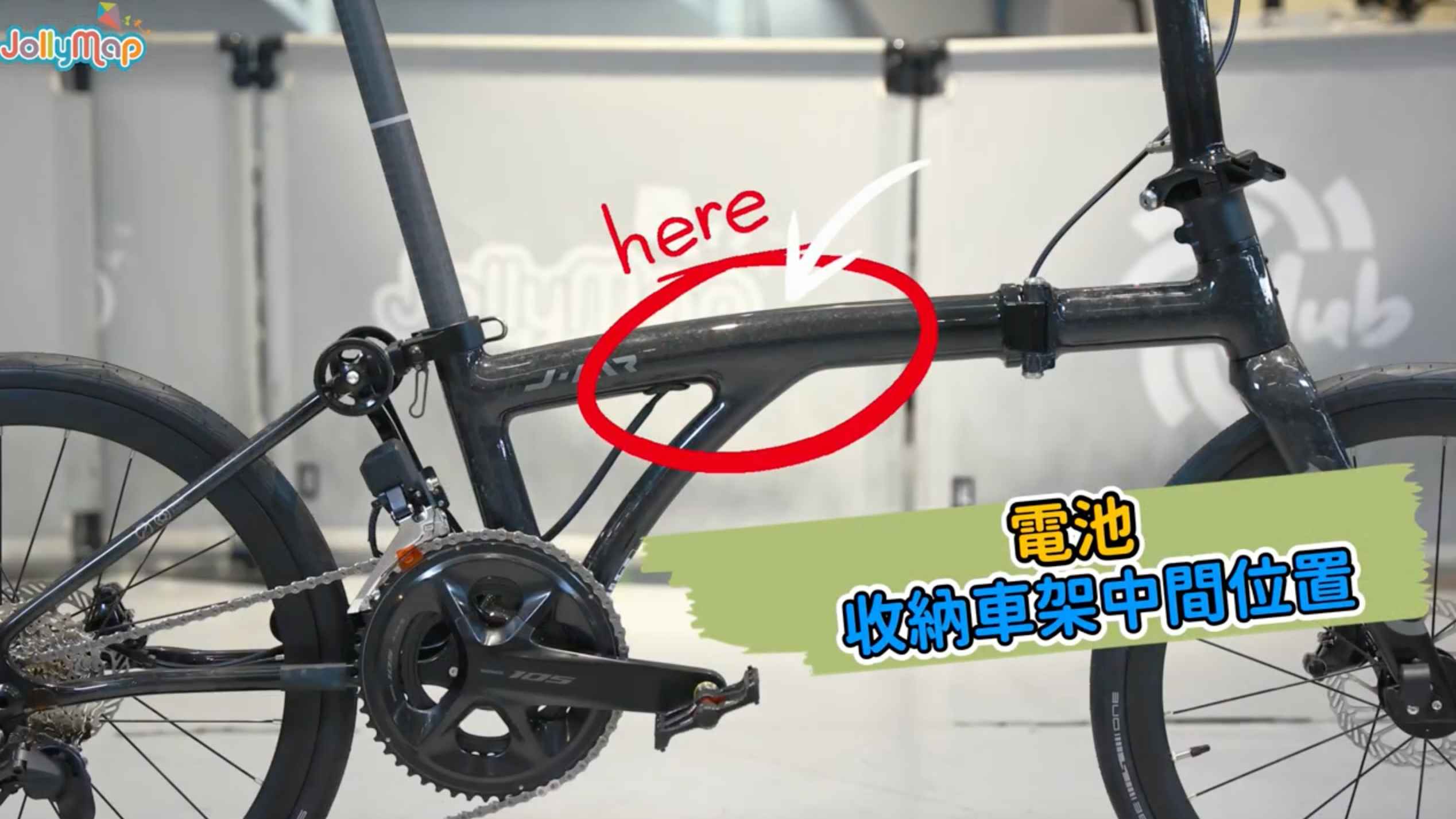

Java came up with a clever solution: they tucked the battery inside the middle section of the frame, and left extra cable length to ensure folding doesn't disrupt the Di2 system at all. A nice touch that shows real engineering care.





4. Drop Bar Design: Full Carbon Handlebar with Gravel-Style Flare

The drop bar is another huge selling point on the J-Air R.

• Handlebar Specs

• Material: Full carbon fibre
• Tops width: ~36cm
• Drops width (C2C): ~42cm
• Design: Flared drops — similar to gravel bikes



• 3 Riding Characteristics to Keep in Mind

  1. 36cm Tops = Sharper Steering
  Most flat bars (straight bars) are wider than 40cm, but the J-Air R's tops measure just 36cm. This makes steering noticeably more responsive. New riders may need a little time to adjust, especially when navigating traffic in the city.

  2. Longer Reach = More Road-Bike Posture
  On a flat bar, your hands sit on the bar itself. On a drop bar, they rest on the hoods — which extends your reach by about 7cm. Move down to the drops, and you're looking at closer to 10cm of forward extension. It's a proper road bike position, so riders new to drop bars will need some acclimation.

  3. Taller Head Tube = More Upright Position
  Worth noting — the J-Air R uses the same head tube as the J-Air Carbon, which is relatively tall. Compared to the short head tubes on the Dahon Archer P18 or Birdy P45, the J-Air R gives you a slightly more upright riding position — less extreme.

  Is this good or bad? Depends on you:

• Pro: More comfortable on long rides, better for casual riders
• Con: Serious roadies chasing an aggressive posture might find it a bit relaxed



5. Wheels & Brakes: Shimano 105 Hydraulic Disc + 451 Wheels

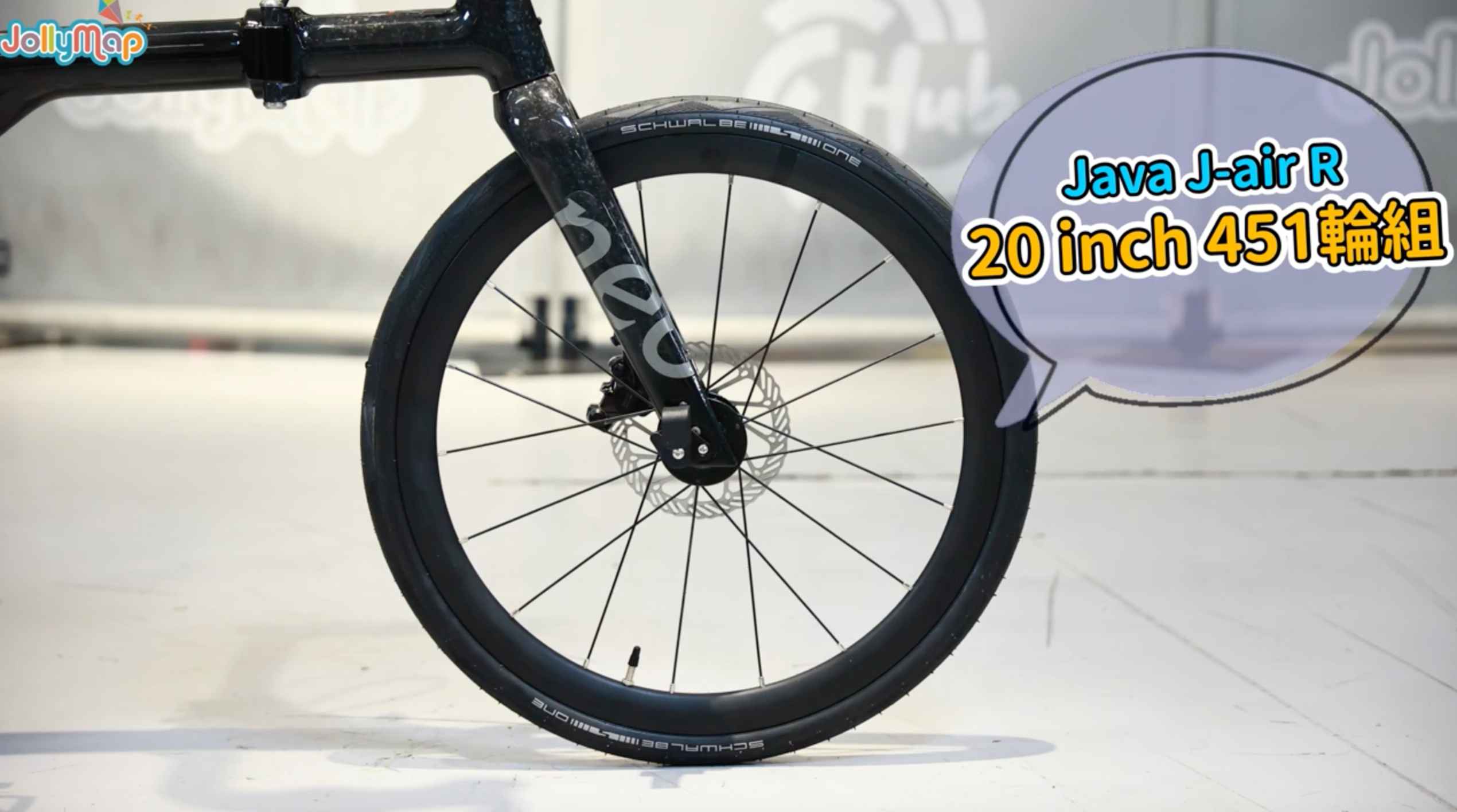

• Wheels

• Size: 451 (slightly larger than standard 406)
• Tyres: 1-1/8 inch (28C)

The advantage of 451 wheels is better rolling efficiency and higher top speeds, while still keeping the compact folding footprint.



• Brakes

• System: Shimano 105 Hydraulic Disc Brakes

You get proper 105-grade hydraulic discs — impeccable stopping power and lever feel, reliable in any weather or road condition. Safety is top-tier.



6. Other Components: Saddle & Pedals — Consider Upgrading

For the rest of the build, the J-Air R uses the standard Java Neo saddle and single-side quick-release pedals — same as the other Neo models.



Jason's honest recommendation: if you're planning to use this bike for long-distance or serious road riding, both are worth upgrading.

• Saddle upgrade: With the forward-leaning drop bar posture, the stock saddle may not offer enough support. Swapping in a proper road bike saddle will make long rides much more comfortable.

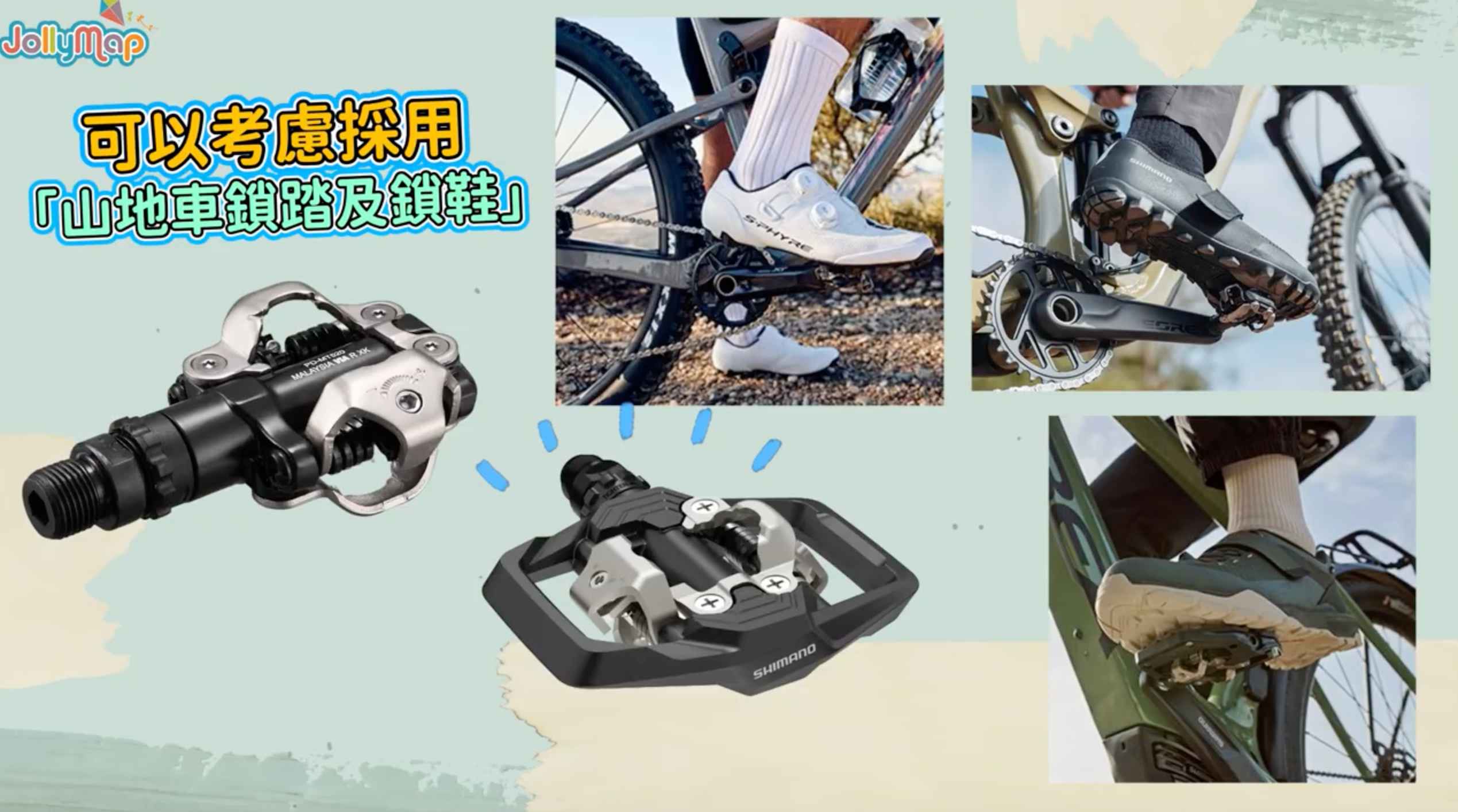

• Pedal upgrade (clipless): For long rides, consider switching to MTB clipless pedals with MTB cleat shoes. Why MTB and not road? Because folders are all about portability — you'll often walk into malls, restaurants, or apartment lobbies. MTB cleats have flat rubber soles that let you walk normally, while road cleats make you clip-clop around awkwardly and slip everywhere.



7. Weight: 9.4kg with Pedals and Drop Bar

The moment you've all been waiting for — the scale results!

J-Air R complete bike weight (with pedals + drop bar): approximately 9.4kg

For a folder that packs:

• Full carbon frame
• Dual chainring drivetrain
• Shimano 105 Di2 electronic shifting
• Hydraulic disc brakes
• 451 wheels
• Battery

…9.4kg is genuinely competitive. Carrying it up stairs, onto the bus, or into your car boot is no problem at all.



8. Before You Buy: Who Is the J-Air R For?

So, is the Java J-Air R right for you? Here's Jason's summary:

✅ This Bike Is For You If…

• You want a full carbon + electronic-shifting folder in one purchase
• You crave road-bike speed but need folder-level portability
• You have limited storage space at home or the office
• You often ride long distances or hilly routes
• You care about looks and want a head-turning folder
• You have a budget of around HK$10,000+

⚠️ Things to Think About

• If you've never ridden drop bars, expect a learning curve
• Riders chasing an aggressive road position may find the head tube too tall
• Budget a bit extra for saddle and pedal upgrades



9. Verdict: Full Carbon Di2 Drop Bar Folder for HK$10K+ — Worth It?

In Jason's opinion, the Java J-Air R is the most talked-about, best-value drop bar folder in the sub-HK$15K price range right now.

• Full carbon frame ✓
• Shimano 105 Di2 electronic shifting ✓
• 52/36 double chainring ✓
• Hydraulic disc brakes ✓
• 451 larger wheels ✓
• Lightweight 9.4kg ✓
• Stunning marble pattern finish ✓

To match this spec on another brand, you'd likely need to spend several thousand — or over ten thousand — more. Java has bundled it all into one package. It's arguably the boldest move the folding bike industry has seen in years.

Whether it's the right bike for you depends on your riding style and budget. Want a test ride? Ready to place an order? Have more questions?

📍 Visit the Jollymap Hong Kong showroom for a test ride
💬 Drop a comment and let us know what you think
🔔 Subscribe to our YouTube channel and blog — Jason will keep bringing you the latest and most in-depth cycling product reviews!



👉Learn more or order the Java J-Air R
