CAMP SR5 Sport Tiagra with Powermeter Aluminum Road Bike
$8,800.00
Color Options
Beige
Grey
White
YellowSize Options
The CAMP SR5 Sport is an aluminium disc-brake road bike. This version comes with Shimano Tiagra 2x10-speed shifting and hydraulic disc brakes, plus a Magene SPX1 power meter crankset and a Magene C416 GPS bike computer fitted from the factory, so you can record your power from the first ride. It suits riders who want to start training with power without buying a separate power meter.
At a glance
- Category: aluminium road bike, hydraulic disc brakes, mechanical shifting, power meter included
- Brand: Camp (Huizhou, Guangdong, China), SR5 Sport
- Frame and fork: Camp lightweight aluminium frame with internal routing and an integrated gravity-cast bottom bracket shell, Camp carbon fork
- Shifting and brakes: Shimano Tiagra ST-R4720 levers with hydraulic disc brakes, FD-R4700 / RD-R4700, CS-HG500 cassette, 2x10-speed (20 speeds)
- Training kit: Magene SPX1 power meter crankset (50/34T), Magene C416 GPS bike computer
- Cockpit: Dongli T800 carbon integrated handlebar with fully hidden routing; carbon seatpost
- Weight: approx. 9.6 kg without pedals
- Sizes: 460, 490, 510, 530 and 550 mm, for riders of about 157–191 cm
Want to train with power without buying a power meter separately?
A power meter turns every pedal stroke into a number, so you can train in power zones and track progress, but if the bike does not come with one you have to buy and fit it separately. The SR5 Sport comes with a Magene SPX1 power meter crankset and a Magene C416 GPS computer, so you can log power, speed and distance from day one.
Who is it for?
- Riders starting out on an aluminium road bike who also want to begin power training.
- Riders who want a carbon integrated bar and a clean, internally routed front end on an aluminium-frame budget.
- Riders of about 157 to 191 cm: all five sizes come with a recommended height range.
Less suited to: riders who want 11- or 12-speed, electronic shifting or a carbon frame. For a carbon option from another brand, see the HASA CORAGGIO 2025 105 Road Bike.

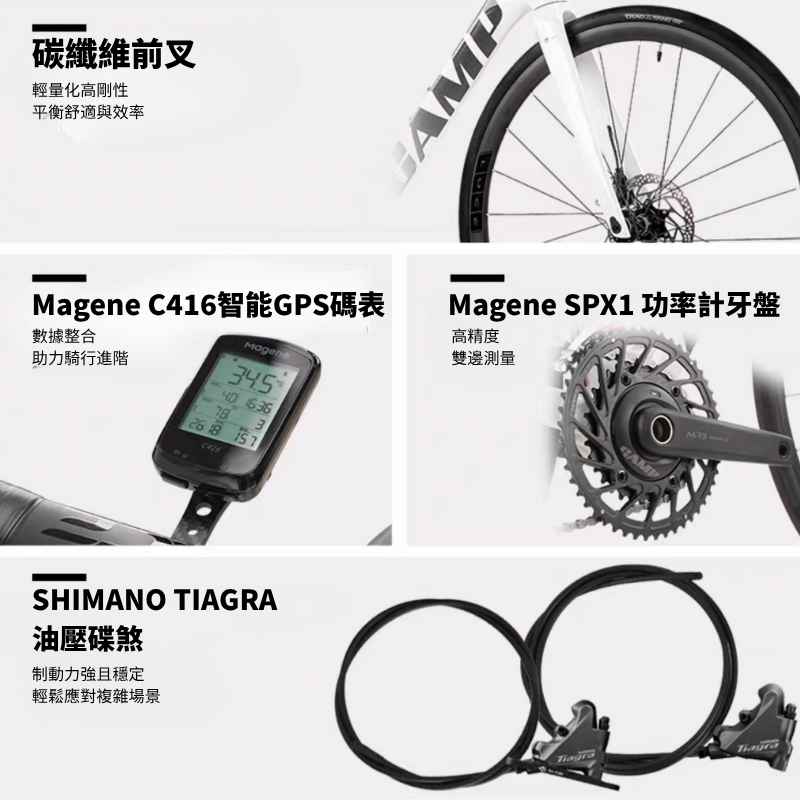

Key features

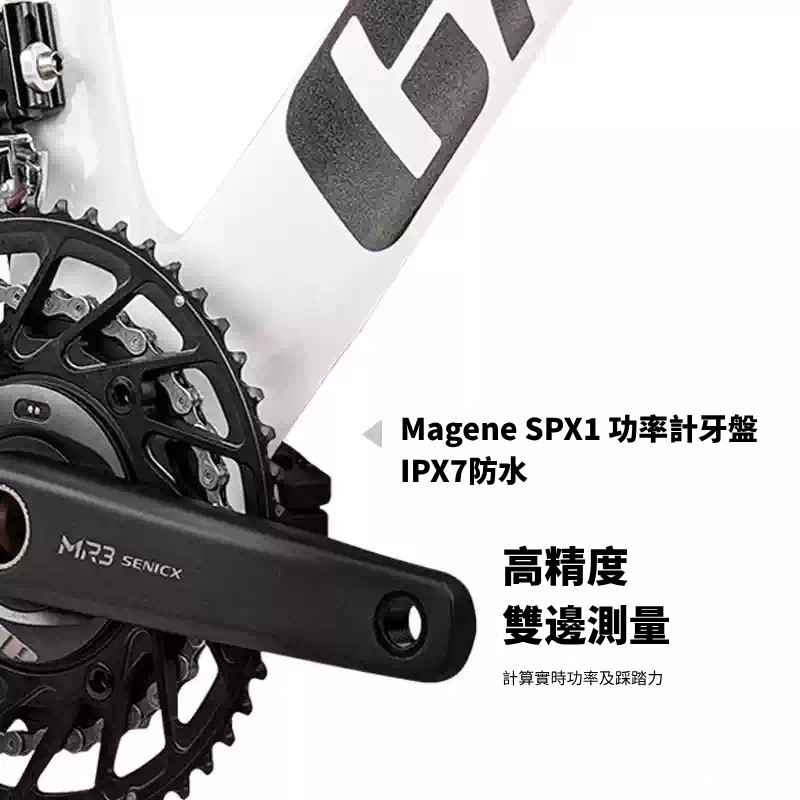

Magene SPX1 power meter crankset
The crankset is a Magene SPX1 50/34T power meter crankset. The promotional image describes it as dual-sided and IPX7 waterproof, calculating real-time power and pedalling force.

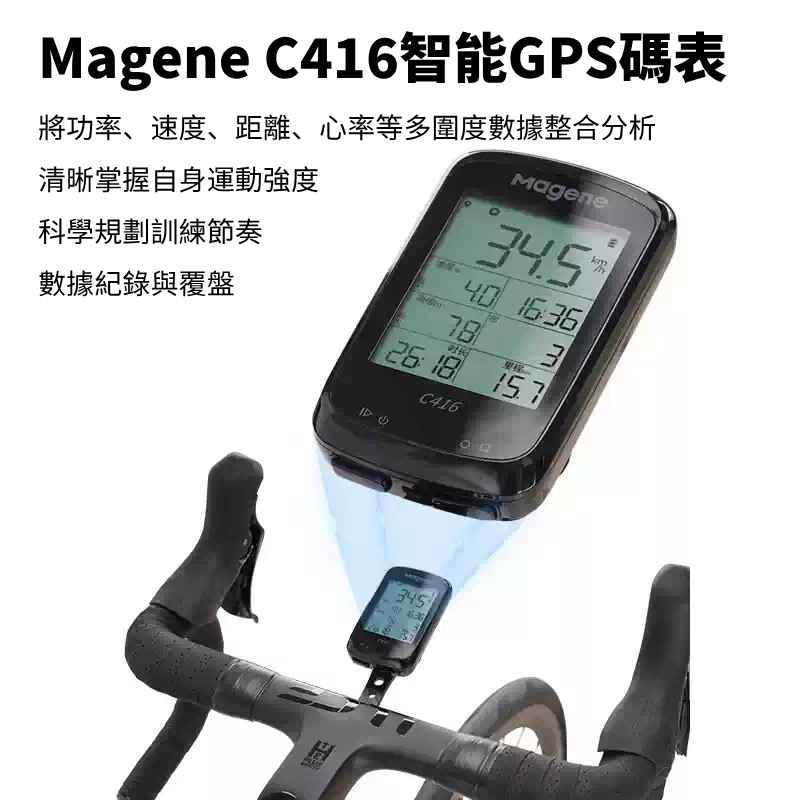

Magene C416 GPS bike computer
A Magene C416 GPS bike computer comes with the bike, showing power, speed, distance and heart rate so you can follow your ride in real time and log your training.

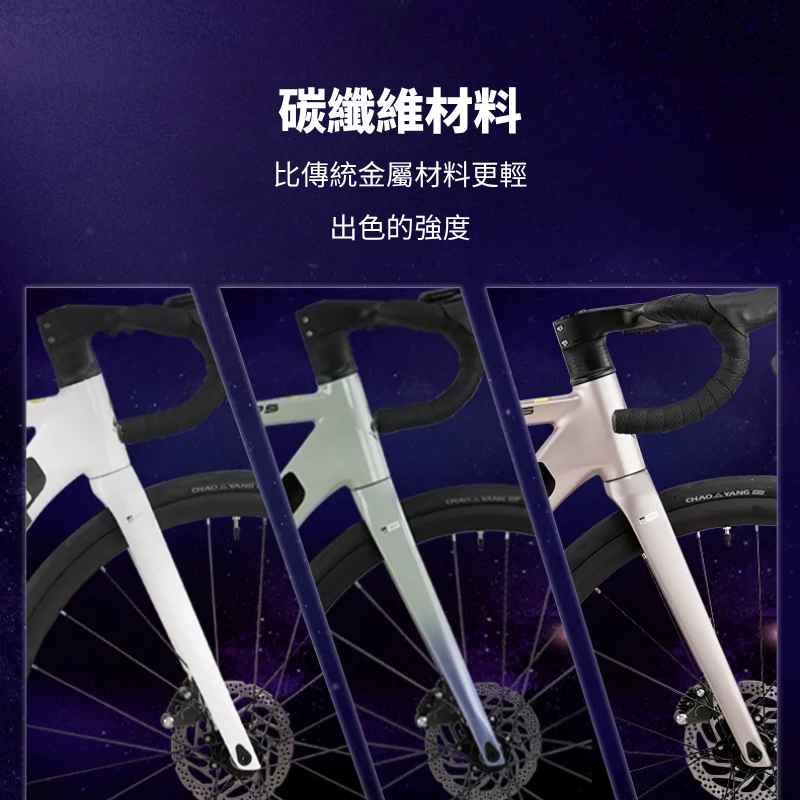

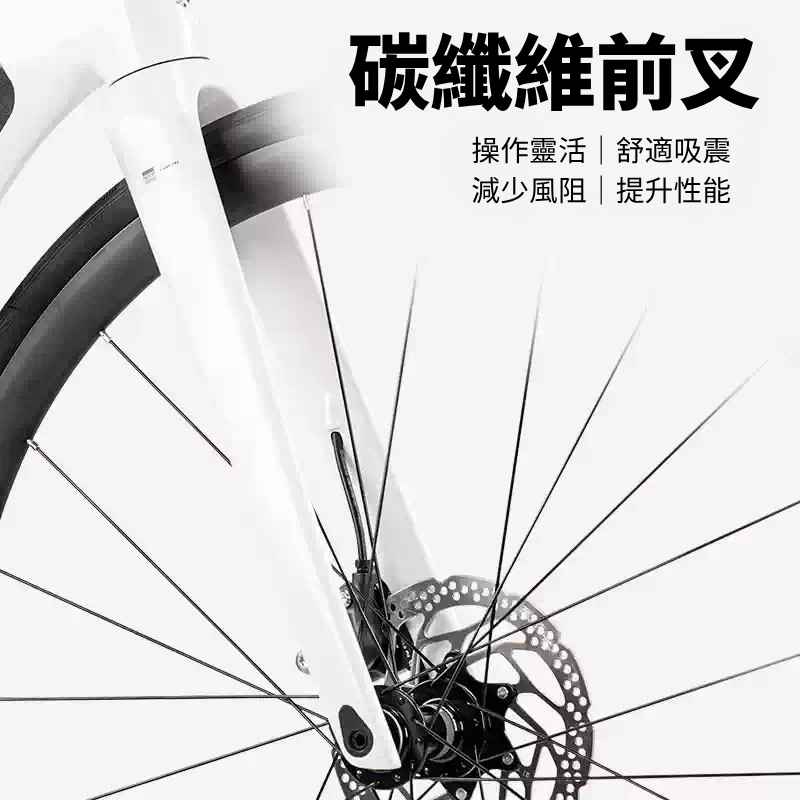

Carbon fork and carbon seatpost
The fork is a Camp carbon fork, and the seatpost is upgraded to carbon. Seatpost length: 300 mm on the 460 / 490 mm sizes, 350 mm on the 510 / 530 / 550 mm sizes.

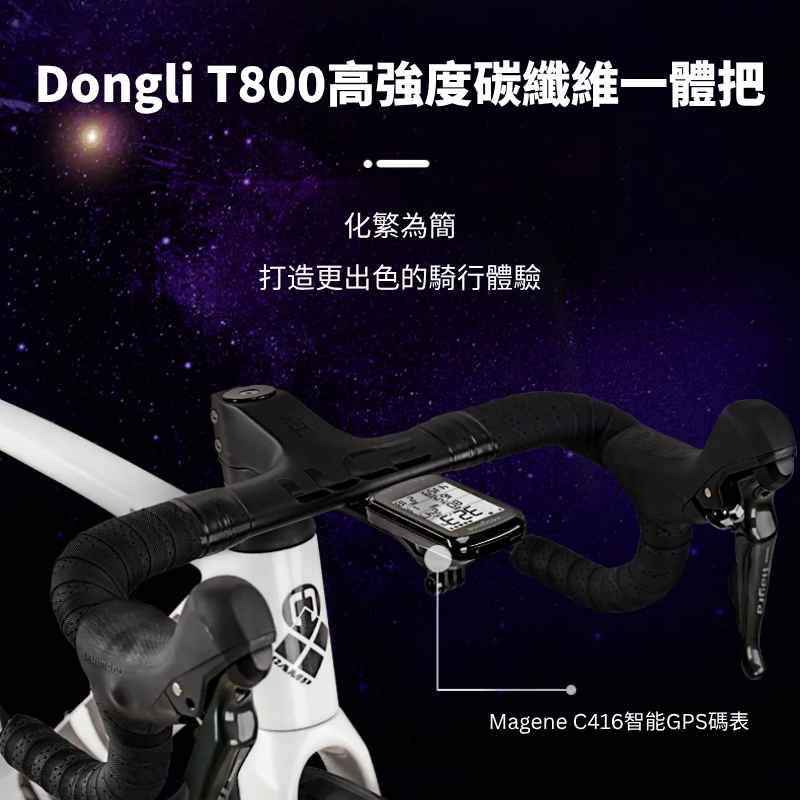

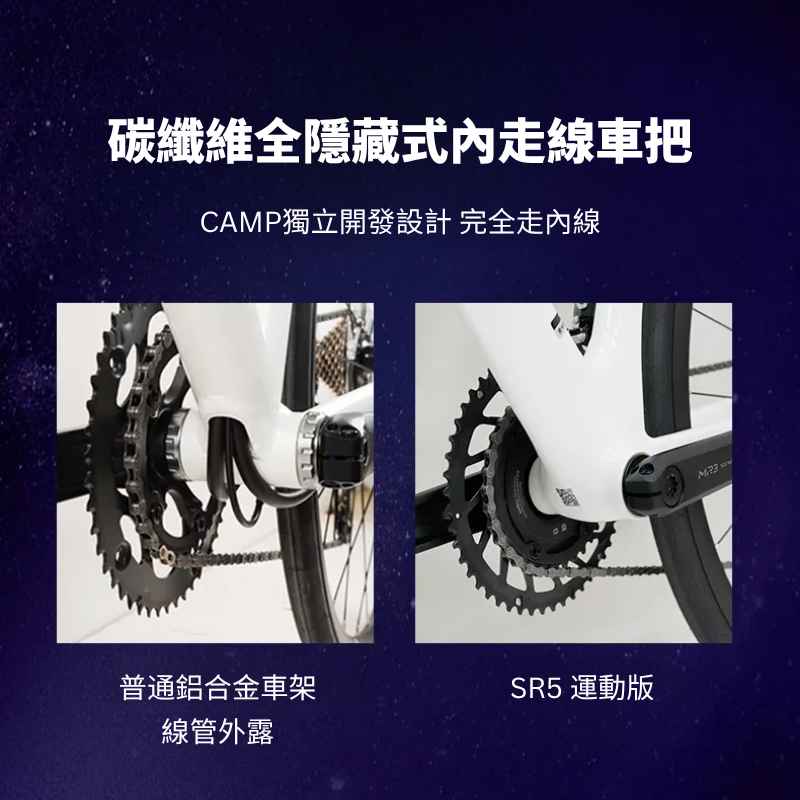

Dongli T800 carbon integrated handlebar with hidden routing
The cockpit is a Dongli T800 carbon integrated handlebar, with all shift and brake lines hidden inside the bar and frame for a clean front end. Bar width by size: 380 mm on 460 mm, 400 mm on 490 / 510 mm, 420 mm on 530 mm.

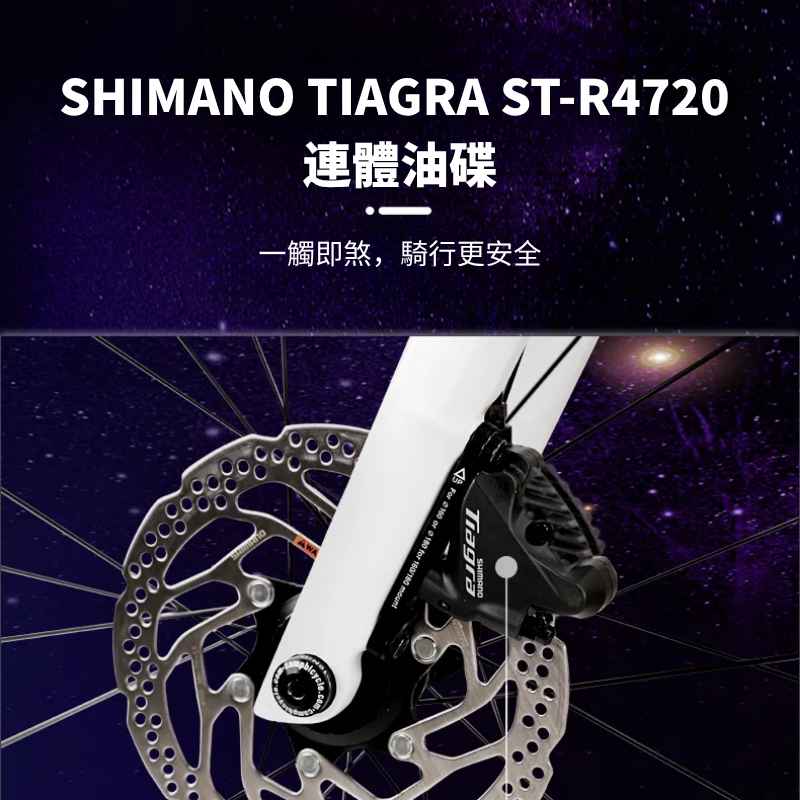

Shimano Tiagra hydraulic disc brakes
The levers are Shimano Tiagra ST-R4720 dual control levers with Tiagra hydraulic disc brakes, so shifting and braking are on the same lever.
Alloy wheels and 700C tyres
The wheels use Novatec alloy hubs (two front / four rear bearings) with 30 mm deep LUCE alloy rims, and Chaoyang 700C road tyres. Tyre width is listed as either 30C or 28C in different sources, so please contact us to confirm before ordering.
How to choose a Camp road bike
The other Camp road bike in the Jollymap shop is the Camp Radon X 2x9 Speed Disc Brake Road Bike (Shimano Sora derailleurs, 2x9-speed). The table below compares the two:
| Model | Frame | Groupset | Wheelset | Brakes | Weight (approx.) | Best for |
|---|---|---|---|---|---|---|
| Camp Radon X 2x9 Speed Disc Brake Road Bike | Aluminium alloy, internal routing; alloy fork | 2 × 9-speed mechanical (Shimano Sora derailleurs with SunRace levers, 34/50T, HR9-28T cassette) | Alloy hubs with alloy rims (rim depth varies by batch) | SunRace integrated hydraulic disc | — | New road riders who want hydraulic disc brakes |
| CAMP SR5 Sport Tiagra with Powermeter Aluminum Road Bike (this page) | Lightweight aluminium alloy, internal routing; carbon fork | 2 × 10-speed mechanical (Shimano Tiagra 4700, Magene SPX1 power meter crankset 50/34T) | Novatec hubs with 30 mm deep rims | Shimano Tiagra hydraulic disc (ST-R4720) | 9.6 kg (Jollymap product info, without pedals) | Riders who want power data to guide their training |
Sizing

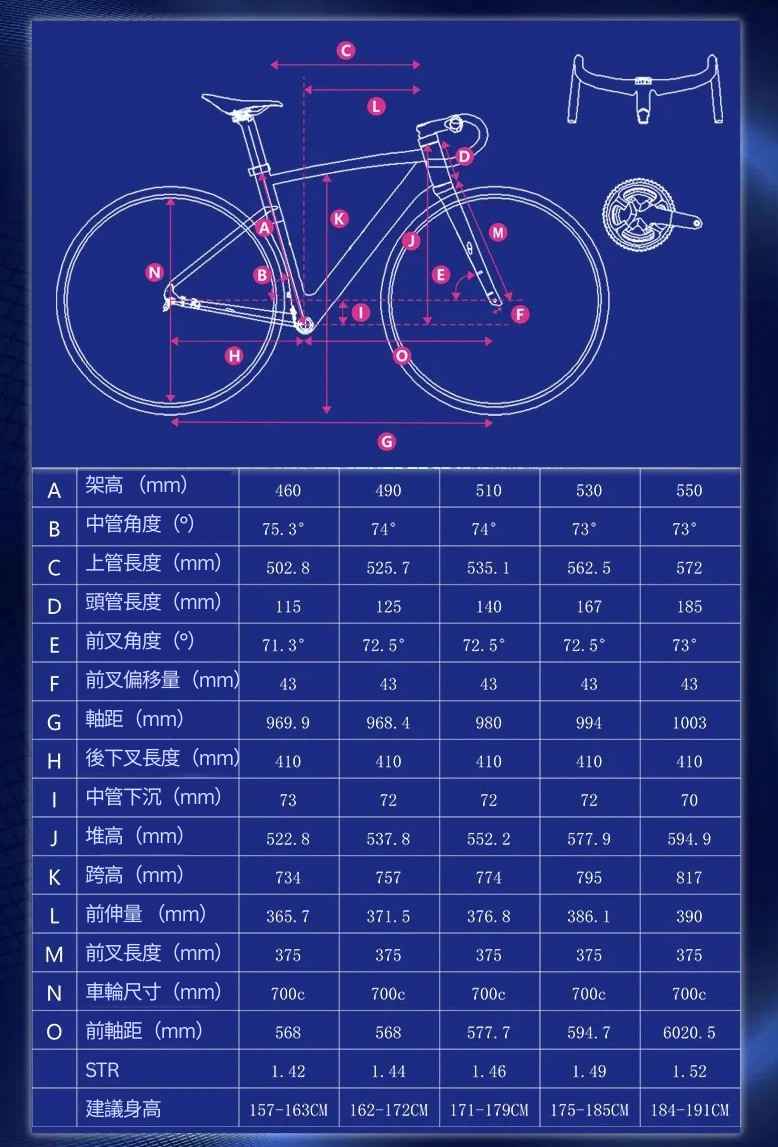

The SR5 Sport comes in 460, 490, 510, 530 and 550 mm (listed in the shop as 46, 49, 51, 53 and 55). Figures from the size and geometry chart:
| Size (seat tube) | Rider height | Top tube (mm) | Reach (mm) | Stack (mm) |
|---|---|---|---|---|
| 460 mm | 157–163 cm | 502.8 | 365.7 | 522.8 |
| 490 mm | 162–172 cm | 525.7 | 371.5 | 537.8 |
| 510 mm | 171–179 cm | 535.1 | 376.8 | 552.2 |
| 530 mm | 175–185 cm | 562.5 | 386.1 | 577.9 |
| 550 mm | 184–191 cm | 572 | 390 | 594.9 |
Between two sizes? Chat with us before ordering with your height, inseam and current bike size, or see Jollymap's bike sizing and fitting service.
Full specifications
| Brand | Camp |
| Model | SR5 Sport |
| Speeds | 700C, 2x10-speed (20 speeds) |
| Frame | Camp lightweight aluminium frame, internal routing, thru-axle, integrated gravity-cast bottom bracket shell |
| Fork | Camp carbon fork |
| Shifters | Shimano Tiagra ST-R4720 dual control levers |
| Front derailleur | Shimano Tiagra FD-R4700 |
| Rear derailleur | Shimano Tiagra RD-R4700 |
| Crankset | Magene SPX1, 50/34T, with power meter |
| Cassette | Shimano Tiagra CS-HG500 |
| Chain | KMC X10R |
| Brakes | Shimano Tiagra ST-R4720 hydraulic disc |
| Wheels | Novatec alloy hubs (2 front / 4 rear bearings), 30 mm deep LUCE alloy rims |
| Tyres | Chaoyang 700C road tyres, 60TPI (width listed as 30C or 28C; please confirm before ordering) |
| Handlebar | Dongli T800 carbon integrated handlebar, fully hidden routing; 380 / 400 / 420 mm wide by size |
| Seatpost | Carbon; 300 mm on 460 / 490 mm sizes, 350 mm on 510 / 530 / 550 mm sizes |
| Saddle | SR Saddle |
| Bike computer | Magene C416 GPS |
| Weight | Approx. 9.6 kg without pedals |
| Sizes | 460, 490, 510, 530, 550 mm |
| Colours | Beige, Grey, White, Yellow |
Spec source: SR5 Sport specifications and promotional images supplied to Jollymap. The SR5 currently on Camp's website is a different build (Shimano Tiagra 4000 2x11-speed, no power meter); Camp also notes that individual parts may change between batches, and the actual product prevails.
About Camp
Camp is run by Huizhou Kaisyprui Bicycle Co., Ltd in Huizhou, Guangdong, China (Camp website), and its range includes carbon and aluminium road bikes such as the ACE, SR and Radon series.
Jollymap's advice
If you were planning to add a power meter and bike computer anyway, the SR5 Sport has both fitted, which saves choosing and installing them separately. This Sport build differs from the SR5 on Camp's website, and some parts may vary by batch; if you have questions about tyre width, the power meter or sizing, chat with us before ordering, or message our Facebook page.
FAQ
How much does the Camp SR5 Sport weigh?
About 9.6 kg without pedals (Jollymap spec). Camp's website quotes about 9.5 kg for the current standard SR5 (small size, without pedals and small accessories), but the builds differ, so the figures are not directly comparable.
Is the SR5 Sport power meter single-sided or dual-sided?
The promotional image describes the Magene SPX1 power meter crankset as dual-sided. Magene's international website does not list detailed specs for the SPX1, so if you need to confirm the measurement method, battery or connectivity, please contact us before ordering.
How is the SR5 Sport different from the SR5 on Camp's website?
The SR5 currently on Camp's website has Shimano Tiagra ST-R4020 2x11-speed (22 speeds), a PRF 34-50T crankset without a power meter, an alloy integrated bar, an alloy seatpost and a Toray T700 carbon thru-axle fork. The SR5 Sport on this page has Shimano Tiagra ST-R4720 2x10-speed, a Magene SPX1 power meter crankset, a Magene C416 computer, a Dongli T800 carbon integrated bar and a carbon seatpost. Both use an aluminium internally routed thru-axle frame with an integrated gravity-cast bottom bracket shell.
Which size suits a 177 cm rider?
177 cm falls within both the 510 mm (171–179 cm) and 530 mm (175–185 cm) ranges. Reach differs by about 9 mm and stack by about 26 mm: the 530 mm gives a more upright, higher front end, while the 510 mm feels more nimble. Chat with us before ordering so we can check your inseam and flexibility.
How many speeds is Shimano Tiagra ST-R4720?
On this bike the Tiagra ST-R4720 levers work with FD-R4700, RD-R4700 and a CS-HG500 cassette as a 2x10-speed (20-speed) drivetrain, with hydraulic disc brake levers built in.
What colours does the Camp SR5 Sport come in? Is there black?
The Jollymap shop has four colours: Beige, Grey, White and Yellow. There is no black option.
How is the Camp SR5 Sport different from the Camp Radon X?
The Camp Radon X is Camp's entry-level aluminium disc road bike with Shimano Sora derailleurs and SunRace integrated levers, 2x9-speed. The SR5 Sport uses Shimano Tiagra 2x10-speed and adds a power meter crankset, a GPS computer and a carbon integrated bar.
Where is Camp from?
Camp is a bike brand from Huizhou, Guangdong, China, run by Huizhou Kaisyprui Bicycle Co., Ltd (Camp website). Its road bike range includes the ACE, SR and Radon series.
Specifications and components follow the manufacturer's latest release and may change without notice. If in doubt, please contact us to confirm before ordering.
