Merida Scultura Rim 100 Road Bike

The Merida Scultura Rim 100 is Merida's entry-level rim-brake road bike, with a 6066 triple-butted aluminium frame, a full carbon tapered fork and Shimano Claris 8-speed shifting. Merida says its geometry is less aggressive and more upright than the Scultura CF5 and CF3 carbon models, making it a good start for riders new to road cycling.

At a glance

• Category: entry-level aluminium road bike, rim brakes, 16-speed mechanical shifting
• Brand: Merida (Taiwan, founded 1972), Scultura family; this is the 2021 model (MY2021)
• Frame and fork: Scultura Lite BSA 6066 triple-butted aluminium frame with internal routing; Scultura Rim CF2 full carbon tapered fork
• Drivetrain: Shimano Claris, 2x8 (16-speed), FSA Tempo 50-34T chainset, Sunrace 11-28T cassette
• Brakes: Lee Chi Road dual-pivot calipers, Shimano Claris levers
• Tyres: Maxxis Pursuer 700x25C folding; frame and fork max 700x25C
• Sizes and colours (Jollymap): nine sizes from 4XS to XL; Black, Titanium
• Best for: first-time road bike buyers who prefer a more upright position, riding mainly on cycle tracks and flat roads

Merida Scultura Rim 100 Road Bike Characteristics

Entry-level road bike with classic rim brakes. Beautifully crafted triple butted aluminium frame with balanced road bike geometry for hours of road bike fun. Trusted Shimano/FSA components keep you spinning nice and easy.

Feature

Merida entry-level rim brake road bike and the perfect start if you want to get the miles in on tarmac. Based on the proven and less aggressive geometry than the new top models, the 100 offers a lightweight 6066 triple butted aluminium frame with internal cable routing and a lightweight full carbon fork. The carbon fork has a positive impact on the overall weight and provides precise steering and improved vibration absorption over an aluminium fork.

Rather than featuring the more aggressive and race-proven geometry of the CF5 and CF3 models, the CF2 and aluminium SCULTURA models retain their slightly more relaxed geometry. Within this family, we offer our bikes with powerful and easy to modulate disc brakes that deliver constant braking power even in wetter conditions or the more price aggressive rim brake alternative. Due to the less aggressive geometry, our CF2 and aluminium models are ideal for riders who are getting into the sport as well as for those who prefer a slightly more upright position when hitting the lanes.

• Lightweight 6066 triple butted aluminium frame
• Full carbon tapered fork
• Less aggressive geometry than the SCULTURA CF5 and CF3 models
• Shimano Claris 8-speed shifters and derailleurs
• FSA Tempo chainset
• MERIDA EXPERT SL handlebar and MERIDA COMP CC stem

Who is it for?

First-time road bike buyers who want a more upright position for cycle tracks, flat roads and weekend rides. If you often ride in the rain or want more gears, compare the aluminium disc models in the same family: the Merida Scultura 300 Disc Road Bike (Shimano Tiagra 10-speed) and the Merida Scultura 400 Disc Road Bike (Shimano 105 11-speed).

Scultura Rim 100 vs Scultura 300 vs Scultura 400

The table below compares three Merida Scultura aluminium road bikes:

Source: Merida website, Scultura Rim 100 product page (archived model); Jollymap product pages for Scultura 300 Disc and Scultura 400 Disc.

Merida Scultura Rim 100 Road Bike Specifications

Brand / model	Merida Scultura Rim 100 (2021 model)
Frame	Scultura Lite BSA, aluminium, 700x25C max. wheel size, 100x9 / 135x9 mm axle standard, BSA bottom bracket
Fork	Scultura Rim CF2, 700x25C max. wheel size
Brakes	Lee Chi Road Dual Pivot
Brake levers	Shimano Claris
Headset	MERIDA M2341
Handlebar	MERIDA EXPERT SL, aluminium, 380 mm (XXS), 400 mm (XS–S), 420 mm (S/M–M/L), 440 mm (L–XL)
Stem	MERIDA COMP CC, 31.8 mm, aluminium, -6°, 70 mm (4XS/3XS), 80 mm (XXS/XS), 90 mm (S), 100 mm (S/M, M/L), 110 mm (L/XL)
Bar tape	MERIDA ROAD Comp
Front / rear derailleur	Shimano Claris (rear: GS cage)
Shifters	Shimano Claris
Seatpost	MERIDA COMP CC, aluminium, 27.2 mm, 5 mm setback
Seat clamp	MERIDA EXPERT
Saddle	MERIDA COMP SL
Chain	Sunrace CN-M84
Crank	FSA Tempo, 50-34T; 165 mm (4XS/3XS/XXS), 170 mm (XS/S), 172.5 mm (S/M, M/L), 175 mm (L/XL)
Cassette	Sunrace CS8, 11-28T, 8-speed
Bottom bracket	FSA TH-7420ST, cartridge bearing
Hubs	Road seal bearing, 100x9 mm front 24H, 130x9 mm rear 28H, QR
Rims	MERIDA COMP SL, aluminium, 17 mm inner width, 20 mm height, not tubeless ready
Tyres	Maxxis Pursuer, 700x25C, folding (front and rear)
Max. weight	120 kg
Colours (Jollymap)	Black, Titanium
Sizes (Jollymap)	4XS, 3XS, XXS, XS, S, S/M, M/L, L, XL

Spec source: Merida website, Scultura Rim 100 product page (archived model, 2021). Merida notes that specs are subject to short-term production-related changes that may not be reflected in the specifications and images.

Merida Scultura Rim 100 Road Bike Geometries

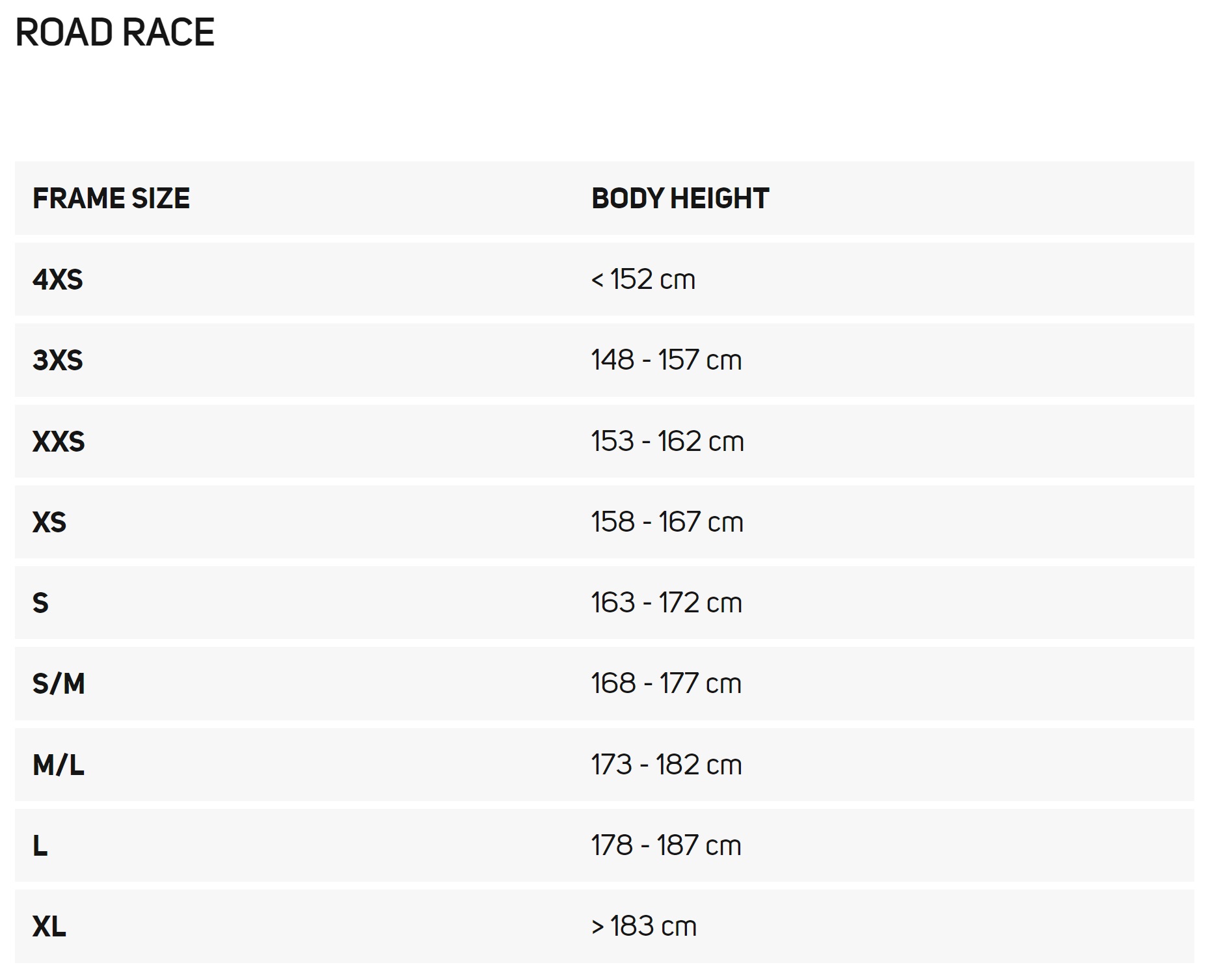

Size Chart

Merida's official Road Race size chart recommends a frame size by rider height (neighbouring sizes overlap):

Size	Rider height (Merida)
4XS	under 152 cm
3XS	148–157 cm
XXS	153–162 cm
XS	158–167 cm
S	163–172 cm
S/M	168–177 cm
M/L	173–182 cm
L	178–187 cm
XL	over 183 cm

Jollymap recommends

If your height sits between two sizes, arm and leg length and flexibility affect the choice. Before ordering, chat with us or message our Facebook page with your height and inseam, and we will help you confirm the size. To fine-tune your position after delivery, see Jollymap's Basic Bike Fitting service.

FAQ

What size Merida Scultura Rim 100 should I choose?

Start with Merida's height ranges above; for example, a 170 cm rider could look at S or S/M. Then compare reach and stack in the geometry table with a bike that fits you. If you are between sizes, contact us before ordering.

How much does the Merida Scultura Rim 100 weigh?

Merida's spec page does not list a complete-bike weight; it only gives a 120 kg maximum weight (including rider). Weight varies by size; contact us before ordering if you need a reference.

Does the Scultura Rim 100 have rim brakes or disc brakes?

Rim brakes. It uses Lee Chi Road dual-pivot calipers with Shimano Claris levers and quick-release wheels (100x9 mm front, 135x9 mm rear frame spacing). For disc brakes, compare the Scultura 300 or 400 Disc.

What is the maximum tyre size for the Scultura Rim 100?

700x25C. Merida lists 700x25C as the maximum for both frame and fork, and the bike comes with Maxxis Pursuer 700x25C folding tyres; the rims are not tubeless ready.

Scultura Rim 100 vs Scultura 300 and 400 Disc: what is the difference?

All three use a 6066 triple-butted aluminium frame and a full carbon tapered fork. The Rim 100 has Shimano Claris 8-speed and rim brakes; the Scultura 300 Disc has Shimano Tiagra 10-speed and hydraulic discs; the Scultura 400 Disc has Shimano 105 11-speed and hydraulic discs.

Which model year is this, and how does it differ from the newer Scultura Rim 100?

This page is the 2021 model with Shimano Claris 8-speed. The Scultura Rim 100 now on Merida's website uses Shimano CUES 2x9-speed, comes in 3XS to XL and in different colours; it is a different model year.

Is the Scultura Rim 100 good for beginners?

Yes. Merida says the aluminium and CF2 Scultura models keep a more relaxed geometry, ideal for riders getting into the sport or who prefer a more upright position.

Where is Merida from?

Merida is a Taiwanese brand; Ike Tseng founded Merida Industries in Taiwan in 1972.

Where can I buy the Merida Scultura Rim 100 in Hong Kong?

Jollymap sells it online and in store. To confirm size or colour before ordering, chat with us or message our Facebook page.



Specifications and components follow the manufacturer's latest release and may change without notice. If in doubt, please contact us to confirm before ordering.

Last updated: October 2026
