Pinarello 2023 F5 Carbon 105 DI2 Road Bike

The 2023 Pinarello F5 is an Italian carbon race road bike with a Toray T700 UD frame, Shimano 105 Di2 12-speed electronic shifting and hydraulic disc brakes. The F5 belongs to the Pinarello F family and shares its asymmetric frame design and race geometry with the higher-end F7 and F9; Pinarello says T700 carbon keeps reactivity while adding dampening to absorb road vibration.

At a glance

• Category: carbon race road bike, disc brakes, Shimano 105 Di2 12-speed electronic shifting
• Brand: Pinarello (Cicli Pinarello, headquartered in Villorba, Italy), Pinarello F family, 2023 model; official name PINARELLO F5 105 Di2
• Frame: Toray T700 UD carbon, TiCR internal cable routing, Italian BB, UCI approved
• Fork: Onda fork (a Pinarello technology since 2000)
• Drivetrain and brakes: Shimano 105 Di2 12-speed; Shimano 105 two-piston hydraulic disc calipers, 160 mm rotors front and rear
• Axles: MOST Ultralight Custom thru-axles, 12x100 mm front and 12x142 mm rear, tool-free removal
• Sizes and colours (Jollymap): 43, 46.5, 50, 51.5, 53, 54.5; Impulse Blue, Impulse Grey, Furious White, Furious Red
• Best for: riders who want a carbon road bike with Pinarello racing heritage and electronic shifting

Pinarello 2023 F5 Carbon 105 DI2 Road Bike

The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

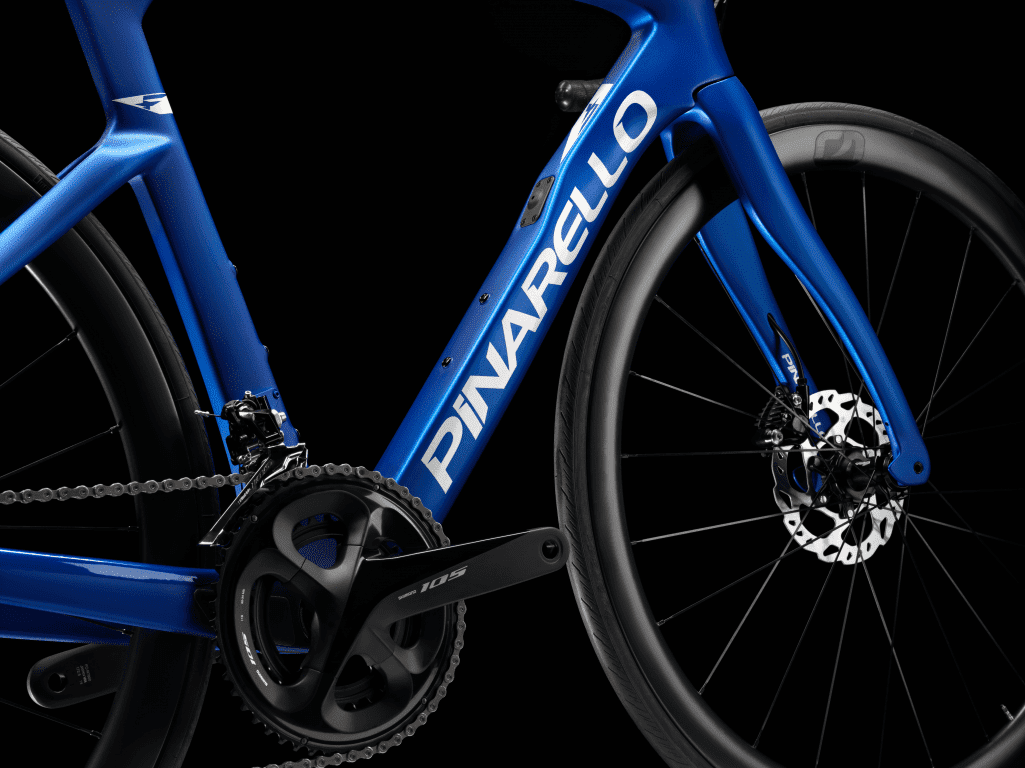

CARBON T700

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun. Within the Pinarello F family, the F9 and F7 use Toray T900 and the F5 uses Toray T700.

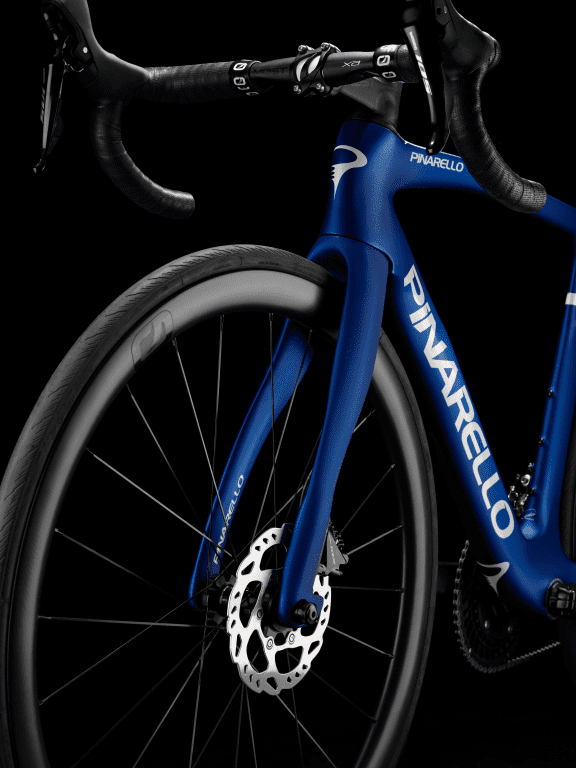

ASYMMETRIC FRAME PINARELLO F

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

COMPETITION GEOMETRY

30 grand tours have been won on Pinarello bikes. 70 years of victories and continuous improvements have been distilled into what we consider the best race geometry in the industry.

Who is it for?

Riders who want race geometry for amateur racing or fast long rides. If long-distance comfort matters more, Pinarello classifies its X family as endurance road bikes, for example the Pinarello 2023 X3 105 DI2 Carbon Road Bike.

F5 versions compared

The table below compares the three Pinarello F5 bikes on Jollymap:

Source: Pinarello website, 2023 F5 105 Di2 product page and model comparison (archived); Jollymap product page for the 2024 F5 105 Di2.

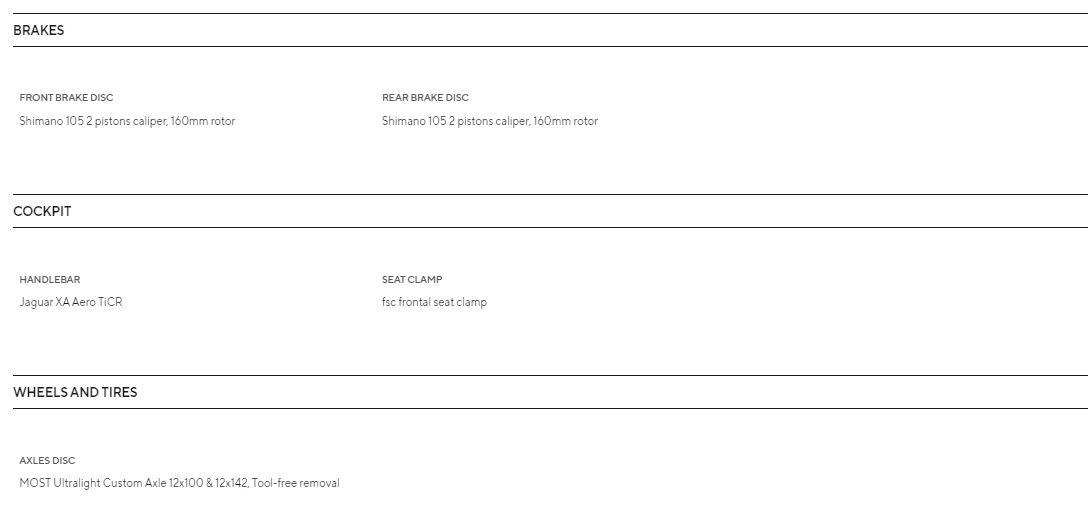

Specifications

Brand / model	Pinarello F5 105 Di2 (2023)
Frame	Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Fork	Pinarello Onda fork
Crankset, cassette, chain, bottom bracket	Shimano 105 Di2 12S
Front derailleur	Shimano 105 Di2 12S
Front brake	Shimano 105 2 pistons caliper, 160mm rotor
Rear brake	Shimano 105 2 pistons caliper, 160mm rotor
Handlebar	Jaguar XA Aero TiCR
Bar tape	MOST
Seatpost	Pinarello Aero Seatpost
Seat clamp	FSC frontal seat clamp
Wheelset	MOST Ultrafast 40 (marked with an asterisk on the official spec page)
Axles	MOST Ultralight Custom Axle 12x100 and 12x142, tool-free removal
Colours (Jollymap)	Impulse Blue, Impulse Grey, Furious White, Furious Red
Sizes (Jollymap)	43, 46.5, 50, 51.5, 53, 54.5

Spec source: Pinarello website, F5 105 Di2 product page (2023, archived). Some overseas retailers list the 2023 F5 105 Di2 with Fulcrum Racing 800 DB wheels and Pirelli P7 Sport 28 mm tyres; wheels may vary by market and batch, so please contact us to confirm before ordering.

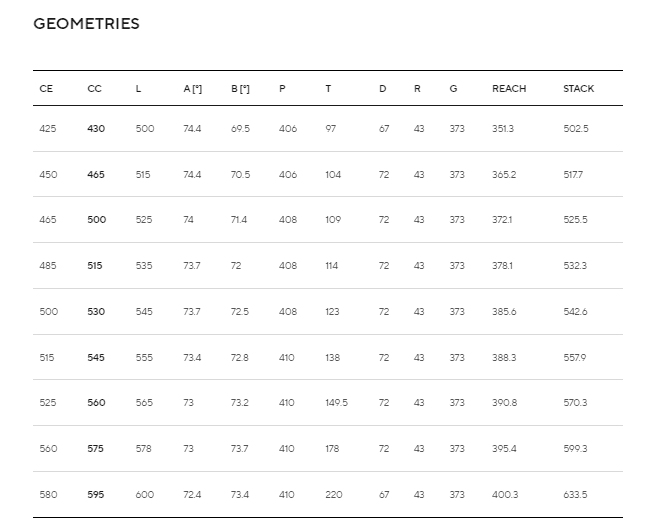

SIZING GUIDE AND GEOMETRY

Sizes are for reference only. Please consult your local authorized dealer to determine the correct size.

Available sizes may vary by country/region.

Pinarello sizes are the seat tube centre-to-centre length (CC); for example, size 50 has 372.1 mm reach and 525.5 mm stack, and size 53 has 385.6 mm reach and 542.6 mm stack. Pinarello does not publish a rider height chart.

Jollymap recommends

Pinarello sizes are CC lengths and do not map directly to other brands' S, M and L. Before ordering, chat with us or message our Facebook page with your height, inseam and the reach and stack of your current bike, and we will help you confirm the size and actual build. To fine-tune your position after delivery, see Jollymap's Basic Bike Fitting service.

FAQ

Is the Pinarello F5 any good, and who is it for?

The F5 is the T700 carbon model of the 2023 Pinarello F family and shares the asymmetric frame and race geometry of the F7 and F9. Pinarello describes the F family as "born to race", strong on climbs and fast descents, so it suits riders who want race geometry with a little more frame dampening.

Pinarello F5 vs F7 vs F9: what is the difference?

Mainly carbon and groupset. Pinarello's 2023 model comparison lists Toray T700 UD for the F5 and Toray T900 UD for the F7 and F9; the F5 comes with Shimano 105 Di2 or Ultegra, the F7 with Ultegra Di2 or SRAM Force AXS, and the F9 with Dura-Ace Di2 or SRAM Red AXS.

2023 F5 105 Di2 vs 2024 F5 105 Di2: what changed?

Both use a Toray T700 UD frame and Shimano 105 Di2 12-speed. Pinarello's 2023 spec lists MOST Ultrafast 40 wheels, while Jollymap's 2024 F5 105 Di2 lists Fulcrum Racing 800 DB wheels. Contact us to confirm the actual build before ordering.

What size Pinarello F5 should I choose?

Pinarello does not publish a height chart and notes that sizes are for reference only. Jollymap offers 43, 46.5, 50, 51.5, 53 and 54.5; compare reach and stack in the geometry table with a bike that fits you, or contact us for help.

How much does the Pinarello F5 weigh?

Pinarello's spec page does not list a complete-bike weight for the F5 105 Di2. Weight varies with size and wheels; contact us before ordering if you need a reference.

Does the Pinarello F5 have disc brakes and electronic shifting?

Yes. The F5 on this page has Shimano 105 Di2 12-speed electronic shifting and Shimano 105 two-piston hydraulic disc calipers with 160 mm rotors front and rear, on 12 mm thru-axles.

Is the Pinarello F5 the same as the Dogma F?

No. The Dogma F and the Pinarello F are two different models in Pinarello's competition range; the F5 belongs to the Pinarello F family.

How does the 2023 F5 differ from the new-generation F5?

The new F5 on Pinarello's website still uses a T700 UD frame; Pinarello lists 32 mm maximum tyre clearance, MOST Fast 45 carbon wheels and nine sizes (430–595). This page is the 2023 model, with the specs shown above.

Where can I buy the Pinarello F5 in Hong Kong?

Jollymap sells it online and in store. To confirm size, colour or build before ordering, chat with us or message our Facebook page.
