CeramicSpeed BB ALPHA for BB30 Shimano Road

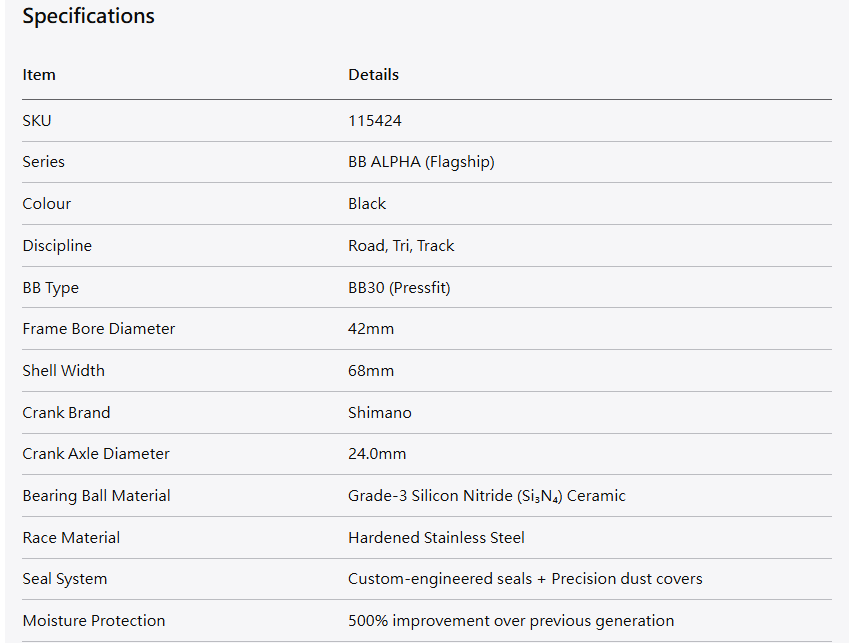

Danish-made CeramicSpeed flagship ceramic bottom bracket for BB30 pressfit frames (42mm bore, 68mm shell width) paired with Shimano 24mm axle road cranksets. Grade-3 Silicon Nitride ceramic balls, hardened stainless-steel races, 500% improved moisture protection, 109g net weight. Hand-built in Denmark. Lifetime warranty. Black finish.

BB ALPHA is CeramicSpeed's latest flagship bottom bracket series, engineered with one goal: to outlast your frame. This model is purpose-built for BB30 pressfit frames paired with Shimano 24mm axle cranksets, suitable for road cycling, triathlon, and track.

BB30 is a pressfit bottom bracket standard developed by Cannondale, featuring a 42mm bore diameter and 68mm shell width, widely adopted by numerous frame manufacturers. This BB ALPHA model precisely pairs with all Shimano cranksets using a 24mm spindle — including Dura-Ace, Ultegra, 105, and similar series — delivering ultimate low-friction rotational performance.

Core Technology

Grade-3 Silicon Nitride Ceramic Balls (Si₃N₄) — Exceptionally high spherical precision, approximately twice the hardness of steel balls at only 41% of the density. Smoother surface and inherent corrosion resistance dramatically reduce rolling friction and inertia losses.

Hardened Stainless-Steel Races — Inherently corrosion-resistant at the material level, preventing rust or pitting even in wet riding conditions or humid storage. Hardening treatment ensures the races withstand high loads without deformation.

Custom-Engineered Seal System — Multi-barrier seal structure with precision dust covers delivers 500% improved moisture protection over the previous generation, while precisely controlled contact pressure ensures no sacrifice in rotational performance.

Simplified Spacer Tube Design — New structure enables faster, more intuitive installation with lighter cups, achieving a 10% overall weight reduction while facilitating future maintenance.

Hand-Built in Denmark — Every BB ALPHA is individually assembled and spin-tested by technicians at CeramicSpeed's Holstebro factory, ensuring quality consistency far beyond mechanised mass production.

Key Features

• Lifetime Warranty — CeramicSpeed's lifetime warranty programme ensures long-term performance under normal use
• Low Friction — Grade-3 Silicon Nitride ceramic balls with hardened stainless-steel races for supremely smooth rotation
• Corrosion Resistant by Design — Hardened stainless steel and ceramic materials inherently resist corrosion for extended service life
• Exceptional Bearing Protection — Custom-engineered seals and dust covers provide 500% improved moisture resistance

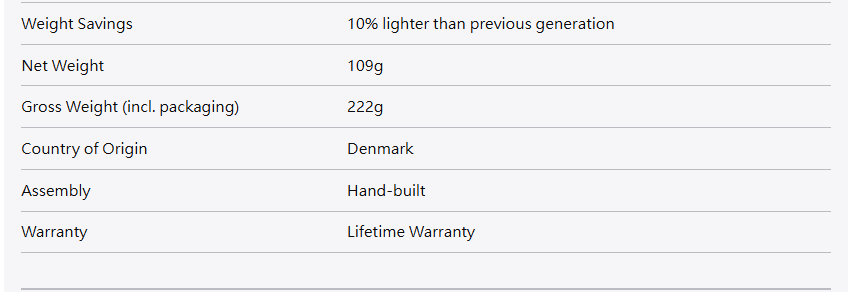

• Lightweight & Serviceable Design — 10% lighter than previous generation (109g net), simplified construction for easy installation and maintenance

In the Box

• BB ALPHA for BB30 Shimano Road ceramic bottom bracket × 1
• UFO TECH All Round Bearing Grease 5ml × 1
• CeramicSpeed decal × 1

---

Compatible Frames

BB30 pressfit frames (42mm bore, 68mm shell width). Commonly found on road and triathlon frames from Cannondale, Cervélo, Specialized, Wilier, Factor, Argon 18, and others.

Note: BB30 (42mm bore) and PF30 (46mm bore) are different standards and not interchangeable. Please confirm your frame specification before purchase.
