Mr TiParts Java Neo Alloy Stem Cap Garmin Mount

The Mr TiParts Java Neo Alloy Stem Cap Garmin Mount is a 6061-T6 aluminium faceplate that replaces the Java Neo's stock stem cap (handlebar clamp cap), with a built-in computer mount and a Garmin base included. It puts your bike computer or phone mount right at the centre of the bar, fits 25.4 mm diameter handlebars only, weighs 31 g (excluding base and screws) and comes in five colours.

At a Glance

• Category: Stem cap (handlebar clamp faceplate) with computer mount for Java Neo
• Brand: Mr TiParts (officially written Mr.TiPARTS)
• Key feature: Stem cap and computer mount in one, with a Garmin base included, so you do not need a separate bar mount
• Key figures: 6061-T6 aluminium; 31 g (excluding base and screws); 25.4 mm handlebars only
• Best for: Java Neo owners who want to fit a Garmin or other bike computer, or a phone mount, while keeping the cockpit tidy

Why a Stem Cap Mount?

A clamp-on computer mount takes up space on a folding bike's short handlebar and makes the front end look cluttered. This faceplate replaces the stock cap and already has a computer mount built in, so your computer or navigation device sits at the centre of the bar where it is easy to read, and the cockpit stays clean.

Fits a Computer Mount or Phone Holder

Four M3 threaded holes on top let you fit a computer mount or phone holder directly, bringing navigation and ride data into view.

Garmin Base Included

A Garmin base is included, so it is ready for a Garmin computer once installed.

6061-T6 Alloy in Five Colours

Precision-machined from 6061-T6 aluminium alloy for a stable, durable fit. Available in Black, Red, Silver, Gold and Purple to match your bike or other Mr TiParts parts.

Compatible Bikes

This stem cap fits 25.4 mm diameter handlebars only. According to retailer specifications, the Java Neo's stock aluminium handlebar is 25.4 mm, for example on the Java NEO 9S 16" 349 9-Speed Folding Bike, Java NEO 20" 9-Speed Folding Bike and Java NEO 20" 9-Speed Carbon Fork Folding Bike. If your model has a carbon handlebar, or you have changed the bar, please check its diameter first.

More Mr TiParts Parts for Java Neo

Mr TiParts also makes the Mr TiParts Java Neo Folding Hinge Clamp and the Mr TiParts Java Neo Alloy Front Fork E-Hook, both offered in several colours so you can build a matching set.

Jollymap Recommends

Check that your handlebar is 25.4 mm before ordering, especially if you have changed the bar or your Neo has a carbon handlebar. If unsure, chat with us or message our Jollymap Facebook page before ordering, with a close-up of your stem area and any size markings on the handlebar.

Specifications

Mr TiParts Java Neo Alloy Stem Cap Garmin Mount
Brand	Mr TiParts
Type	Stem cap (handlebar clamp faceplate) with computer mount
Handlebar	25.4 mm diameter only
Material	6061-T6 aluminium alloy
Weight	31 g (excluding base and screws)

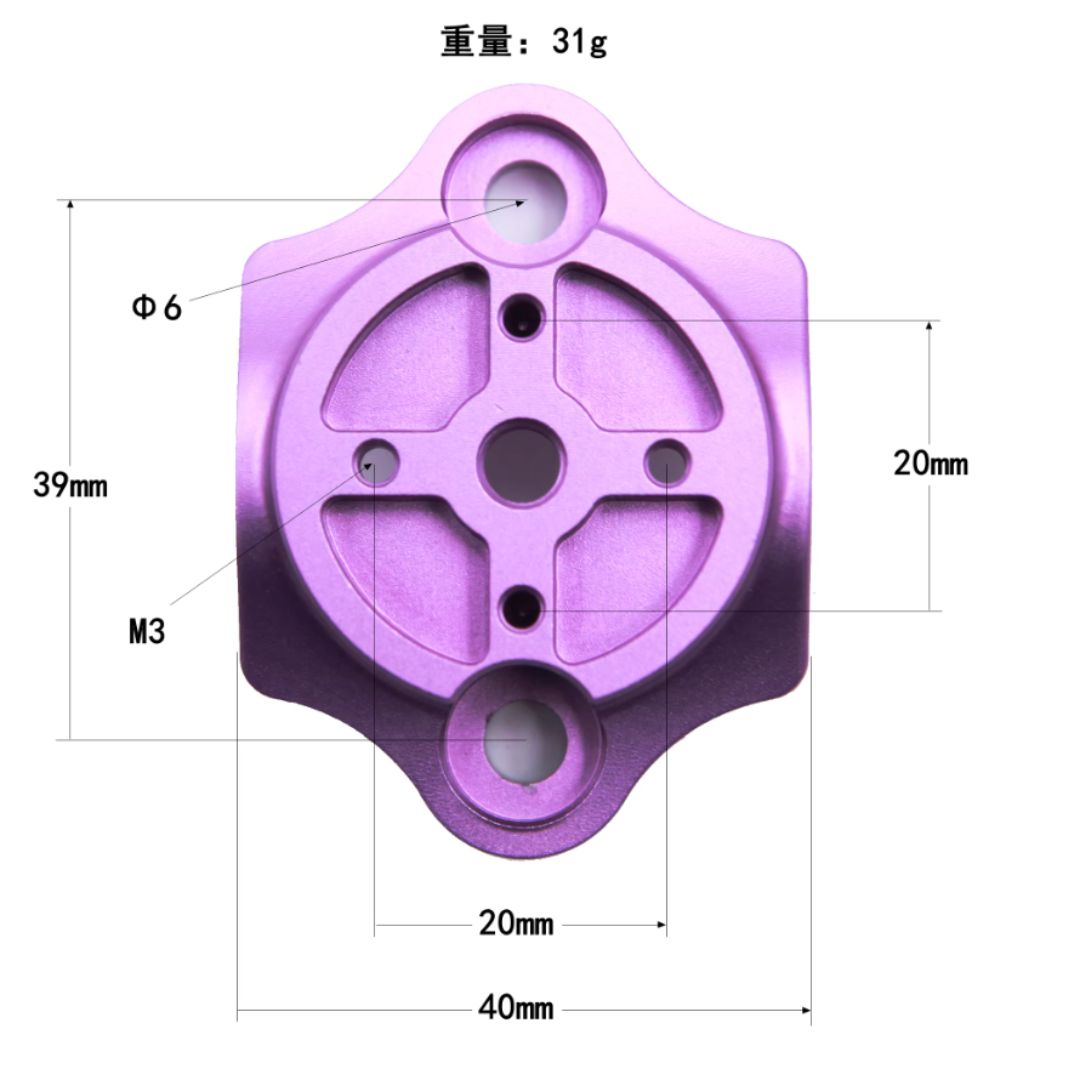

Dimensions	40 mm wide; Φ6 mounting holes at 39 mm spacing; four M3 holes on top at 20 mm spacing
In the box	Stem cap, Garmin base
Colours	Black, Red, Silver, Gold, Purple

Specification source: Mr TiParts supplier product information and dimension drawing.

FAQ

Where does this Garmin mount go?

It replaces the Java Neo's stock stem cap at the front of the stem, where the handlebar is clamped, so the computer sits at the centre of the bar. It is not a headset top cap mount.

Which handlebars does it fit?

Only 25.4 mm diameter handlebars. According to retailer specifications the Java Neo's stock aluminium bar is 25.4 mm; please check the diameter first if you have a carbon or aftermarket bar.

Is a Garmin base included?

Yes. A Garmin base comes in the box, ready for a Garmin computer once installed.

Can I fit a phone mount?

Yes. The top of the cap has a mounting interface (four M3 holes) for a computer mount or phone holder. If you are unsure whether your phone mount's interface matches, contact us before ordering.

How much does it weigh?

31 g, not including the Garmin base and screws. It is made of 6061-T6 aluminium alloy.

What other Java Neo parts does Mr TiParts make?

Jollymap also carries the Mr TiParts Java Neo Folding Hinge Clamp, Alloy Front Fork E-Hook, Integrated Front Carrier Mount with Riser, and the 16-inch and 20-inch aluminium kickstands.

Specifications and components follow the manufacturer's latest release and may change without notice. If in doubt, please contact us to confirm before ordering.

Last updated: October 2026
