Dahon K9 16 inch 349 Folding Bike with Deltec Cable (KAA693) - International version
$4,480.00
Color Options
Black
Cream
Dark GreenSize Options
The Dahon K9 (KAA693) International version is a 16-inch, 349-wheel, 9-speed aluminium folding bike with disc brakes and Dahon's Deltec frame tension cable. Dahon Hong Kong lists it at 10.4 kg with a folded size of 72 x 40 x 61 cm (L x W x H), in Black, Cream and Dark Green. It suits riders who want 349 wheels and a stiffer frame in a 16-inch folder.
Key facts
- Category: 16-inch (349) folding bike, 9-speed, disc brakes
- Brand: Dahon (founded in the USA in 1982, now mainly produced in Shenzhen), model K9, frame code KAA693; listed by Dahon Hong Kong as the "International Model"
- Standout features: 349 wheels with the Deltec frame cable, Dahon custom 9-speed disc-brake system
- Key numbers: 10.4 kg (Dahon official); folded 72 x 40 x 61 cm (L x W x H); kickstand not included
- Best for: riders who want larger 349 wheels, a height-adjustable handlepost and a matte or cream finish. For Shimano gearing and hydraulic brakes, see the Hong Kong Edition of the same bike
Why is it also called the "Korean version K9"?
Dahon Hong Kong lists this bike as "K9 349 (KAA693) International Model". Jollymap's article Dahon K3 Plus family comparison and the Korean-version K9 (in Chinese) calls it the export Korean version, and its photos show Korean safety labels on the frame.
What problem does it solve?
Many 16-inch folders use 305 wheels. Jollymap's article 257 notes that many owners upgrade to larger 349 wheels, and article 204 points out that the first-generation K3 Plus fork was too tight, so fitting 349 wheels meant replacing the fork too. The K9 comes with 349 wheels from the factory and a Deltec-reinforced frame, plus 9 speeds and disc brakes, so there is no need to modify it yourself. It still folds small enough for a car boot or a corner of your building lobby.
Who is it for?
The K9 suits commuters and weekend riders who want a 16-inch folder with 349 wheels. Jollymap's article 295 notes a height-adjustable handlepost and folding pedals. Two things to note: first, the official folded size adds up to about 173 cm, slightly over the MTR's 170 cm luggage limit; second, Dahon Hong Kong does not list a maximum load or rider height range for the K9, so please contact us before ordering if you are outside the typical size range.
349 wheels
349 and 305 are ISO rim diameters in millimetres. Both are called 16 inch, but the 349 wheel is larger. Dahon Hong Kong lists the K9 as 16 inch ETRTO 349.

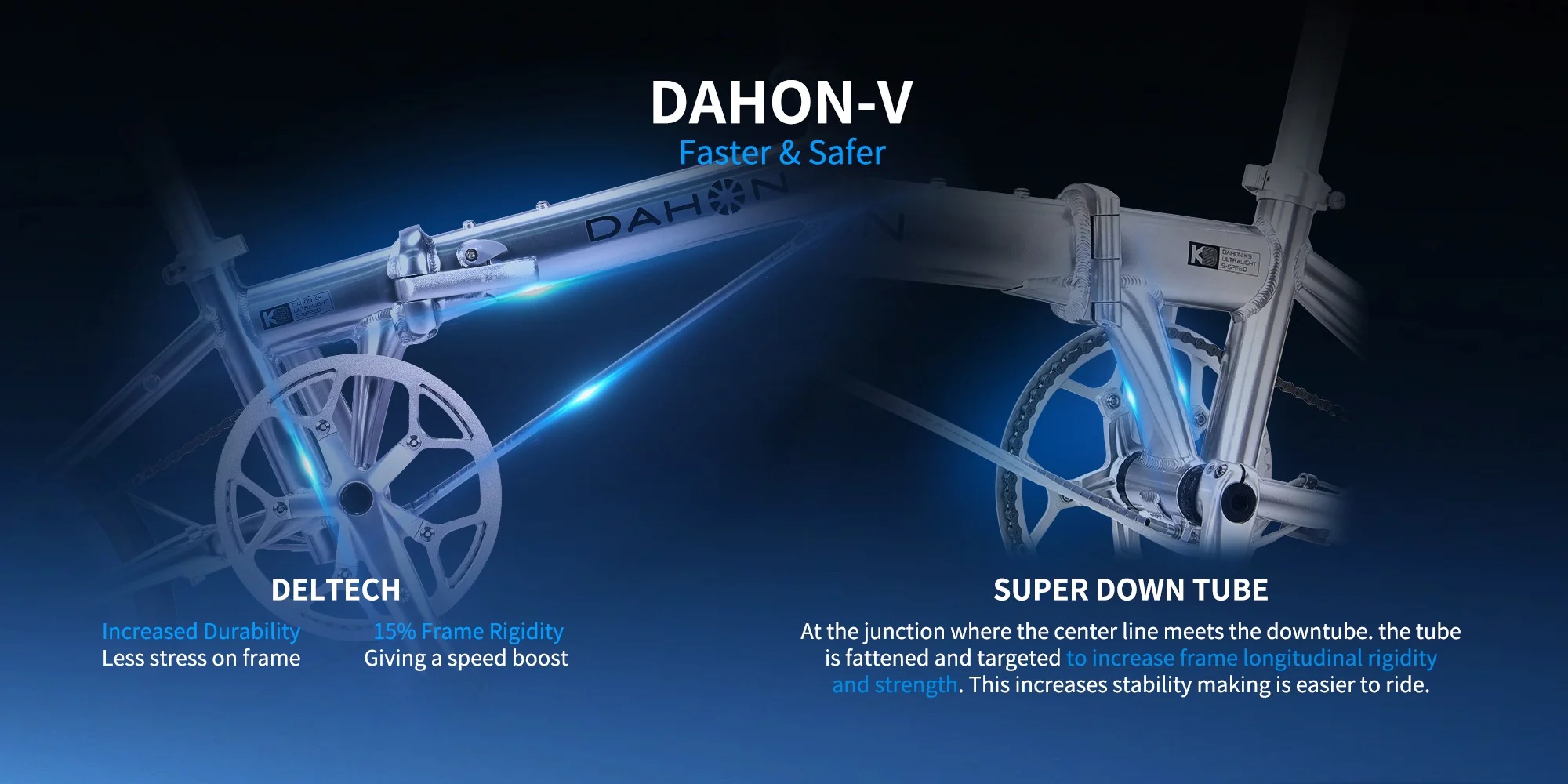

Deltec frame cable
Deltec is a tension cable fitted under the frame, linking the head tube and the down tube to form a triangle. Dahon says it increases frame rigidity by about 15% and reduces stress on the folding joint. Jollymap's article 295 adds that the K9's gear and brake cables are routed along the Deltec cable to the rear for a tidier look.
Dahon custom 9-speed with disc brakes
Dahon Hong Kong specifies a "DAHON custom 9-speed disc brake" system. Photos in Jollymap's article 295 show Dahon's own shifter, rear derailleur and brake levers, a 55T chainring with a hollow bottom bracket axle and 170 mm cranks, and an 11–28T cassette.
Height-adjustable handlepost and luggage socket
According to the family comparison in Jollymap's article 295, the K9 handlepost can be raised and lowered, and there is a luggage socket on the head tube for a front bag or rack.
How to choose a Dahon K-series model
This page is the K9 International version (349 wheels, Deltec cable, Dahon custom 9-speed disc brakes). Compared with the rest of the range:
- Want Shimano gearing and hydraulic brakes: the Dahon K9 16 inch 349 folding bike (KAA693) - Hong Kong Edition swaps in a Shimano Sora shifter and rear derailleur (11–32T cassette) and Tektro hydraulic disc brakes, at about 10.57 kg (Dahon official), in White/Pink only.
- Want internal routing and quick-release pedals: the Dahon K9x 16inch (305) Folding Bike - Japan Version uses 305 wheels, an internally routed frame, a fixed-height one-piece handlepost and MKS quick-release pedals, at 9.5 kg (Dahon official).
- Want a K3 Plus with 349 wheels: the Dahon K3 Plus 349 16-inch Folding Bike KAA693 also has 349 wheels and 9-speed disc brakes, at about 10.44 kg (Dahon official), folding to 72 x 39 x 63 cm.
- Like the look of a smooth-welded frame: the Dahon K3 Plus 16-inch (349) Folding Bike KAA693 Flat Welding Version also pairs 349 wheels with the Deltec cable; Jollymap's article 314 says the flat-welded frame looks smoother.
- Want the lighter 305 version: the Dahon K3 Plus 16-inch (305) Folding Bike KAA693 V2 uses 305 wheels and weighs 9.8 kg (Dahon official).
- Want something lighter still: the Dahon K3 14-inch 3-Speed Folding Bike KAA433 uses 14-inch wheels and 3 speeds, at 7.9 kg without pedals (Dahon official).
For the whole range, read Jollymap's articles Japan-version Dahon K9X vs K3 Plus and 2026 Ultimate DAHON Folding Bike Collection. The table below compares wheel size, gearing, brakes, frame and weight across the Dahon K3, K3 Plus, K9 and K9X:
| Model | Wheel size | Drivetrain | Brakes | Frame and handlepost | Weight (approx.) | Folded size (L × W × H) | Best for |
|---|---|---|---|---|---|---|---|
| Dahon K3 14 inch 3-Speed Folding Bike KAA433 | 14" | 3-speed | V-brakes | Aluminium alloy | 7.9 kg (Dahon official, without pedals) | 68 × 31 × 65 cm | Riders short of space at home who mainly ride short, flat trips and want easy storage |
| Dahon K3 Plus 16 inch(305) Folding Bike(kaa693) 2nd gen V2 Deltec Cable | 16" (305) | 9-speed (11–28T) | Disc brakes | Aluminium alloy; DelTec frame tension cable; telescopic, inward-folding handlepost | 9.8 kg (Dahon official) | — | Riders with hills on their route who want steadier braking in the rain while keeping a compact 16" bike |
| Dahon K9x 16inch(305) Folding Bike - Japan Version | 16" (305) | 9-speed (Shimano HG400 cassette, 11–28T) | Tektro mechanical (cable) disc brakes | Aluminium alloy; internal cable routing; DelTec frame tension cable; one-piece inward-folding handlepost (fixed height) | 9.5 kg (Dahon official); 10.18 kg (Jollymap review article) | 72 × 39 × 62 cm | Riders who like the clean internally routed look, are happy with a fixed-height handlepost and want MKS one-sided quick-release pedals as standard |
| Dahon K3 Plus 349 16 inch Folding Bike - KAA693 | 16" (349) | 9-speed | Disc brakes | Aluminium alloy; DelTec frame tension cable; telescopic, inward-folding handlepost | 10.44 kg (Dahon official) | 72 × 39 × 63 cm | Riders who want 349 wheels from the factory instead of upgrading the wheelset themselves |
| Dahon K3 Plus 16 inch(349) Folding Bike(KAA693) Flat Welding Version | 16" (349) | 9-speed | Disc brakes | Flat-welded aluminium alloy frame (smoother-looking joints); DelTec frame tension cable; telescopic, inward-folding handlepost | 10.44 kg (Dahon official) | 72 × 39 × 63 cm | Riders who want 349 wheels and prefer the smoother look of a flat-welded frame |
| Dahon K9 16 inch 349 Folding Bike with Deltec Cable (KAA693) - International version (this page) | 16" (349) | 9-speed (Dahon custom) | Disc brakes | Aluminium alloy; DelTec frame tension cable; height-adjustable handlepost | 10.4 kg (Dahon official) | 72 × 40 × 61 cm | Speed-minded riders who want 349 wheels on a DelTec-cable frame |
| Dahon K9 16 inch 349 folding bike (KAA693) - Hong Kong Edition | 16" (349) | 9-speed Shimano Sora (shifter and rear derailleur, 11–32T) | Tektro hydraulic disc brakes | Aluminium alloy; flat-welded frame and DelTec cable (retailer and Jollymap product data) | 10.57 kg (Dahon official) | — | Riders who often ride up and down hills and want Shimano Sora shifting with hydraulic disc brakes |
Comparison data: Dahon Hong Kong product pages for each model and Jollymap articles.
Jollymap's advice
The K9 International version and the Hong Kong Edition share 349 wheels; the main differences are the gearing, the brakes and the colours, so compare the two if your daily route has a lot of hills. Not sure whether the K9, K9X or K3 Plus is right for you? Please chat with us or message our Facebook page before ordering, and tell us your height, your usual route and your storage space.
Specifications
| Dahon K9 (KAA693) International version | |
|---|---|
| Brand | Dahon |
| Model | K9 (KAA693) |
| Wheel size | 16 inch, 349 wheelset (ETRTO 349) |
| Gearing and brakes | Dahon custom 9-speed, disc brakes |
| Cassette | 11–28T (Jollymap article 295) |
| Chainring and cranks | 55T, 170 mm cranks, hollow bottom bracket axle (Jollymap article 295) |
| Frame | Aluminium, Deltec frame cable |
| Weight | 10.4 kg |
| Folded size | 72 x 40 x 61 cm (L x W x H) |
| Colours | Black, Cream, Dark Green |
| Kickstand | Not included |
*Kickstand not included
Specification source: Dahon Hong Kong K9 349 (KAA693) International Model product page; cassette, chainring and cranks from Jollymap's article 295. Measurements may vary slightly with different measuring tools; parts and accessories may differ between production batches; images are for reference only and the actual product prevails.
FAQ
How much does the Dahon K9 weigh?
10.4 kg. That is the weight Dahon Hong Kong lists for the K9 349 International Model; the Hong Kong Edition of the same bike is about 10.57 kg.
What wheel size does the Dahon K9 use?
16-inch 349 wheels (ETRTO 349). A 349 rim is larger than a 305 rim, even though both are called 16 inch; the K9X and K3 Plus 305 use 305 wheels.
What is the difference between the K9 and the K9X?
The K9 uses 349 wheels, Jollymap's article 295 notes a height-adjustable handlepost, and it weighs 10.4 kg (Dahon official). The K9X uses 305 wheels, an internally routed frame and a fixed-height one-piece handlepost, with MKS quick-release pedals and Tektro disc brakes, at 9.5 kg (Dahon official).
What is the difference between the K9 International version and the Hong Kong Edition?
Mainly the gearing and brakes. According to Dahon Hong Kong's product pages, the International version uses Dahon custom 9-speed disc brakes, weighs 10.4 kg and comes in Black, Cream and Dark Green; the Hong Kong Edition uses a Shimano Sora 9-speed shifter and rear derailleur, an 11–32T cassette and Tektro hydraulic disc brakes, weighs about 10.57 kg and comes in White/Pink only. Both have 16-inch 349 wheels and aluminium frames, and neither includes a kickstand.
What is the difference between the K9 and the K3 Plus 349?
On paper they are very close. Both use 16-inch 349 wheels, 9-speed disc brakes and aluminium frames. Dahon lists the K9 at 10.4 kg, folding to 72 x 40 x 61 cm, and the K3 Plus 349 at about 10.44 kg, folding to 72 x 39 x 63 cm. Dahon specifies the K9's drivetrain as its custom 9-speed system, and the colours differ.
What is the Deltec cable?
Deltec is a tension cable fitted under the frame, linking the head tube and down tube to form a triangle. Dahon says it increases frame rigidity by about 15% and reduces stress on the folding joint; it is not a gear or brake cable.
Can I take the folded K9 on the MTR?
By the official folded size, it is slightly over the MTR limit. MTR rules say the length, width and height of luggage must not add up to more than 170 cm, and the folded K9 measures 72 x 40 x 61 cm, about 173 cm in total. On franchised buses, Regulation 14 of the Public Bus Services Regulations (Cap. 230A) only allows free carriage of items up to 5 kg and 0.1 cubic metres, which a folding bike usually exceeds; minibuses also make no guarantee.
Where is the Dahon K9 made?
Dahon was founded in the USA in 1982 and its main production base is now in Shenzhen. This K9 is the International Model listed by Dahon Hong Kong.
Specifications and components follow the manufacturer's latest release and may change without notice. If in doubt, please contact us to confirm before ordering.
Last updated: October 2026
